Small Jet Suction Sand Dredger Customized

Детали продукта

Place of Origin: china

Фирменное наименование: yongsheng

Номер модели: 6 см.

Условия оплаты & доставки

Minimum Order Quantity: 1

Цена: 56000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Получите самую лучшую цену
Детали продукта
Выделить:

Small Jet Suction Sand Dredger

,

Customized Sand Dredger

,

Small Jet Sand Dredger

Customized:
customized
Состояние:
Новый
Warranty:
1 year
Поток воды:
250 M3/h
Solid Capacity:
40-50 Cbm/H
Max.Dredging Depth 45°:
6m
Расстояние разряда:
500 метров
size:
10M*3.8M*1.0M
Main Engine:
120kw
consumption:
18L/H
Application:
sand suction
Work site:
river lake sea canal
Customized:
customized
Состояние:
Новый
Warranty:
1 year
Поток воды:
250 M3/h
Solid Capacity:
40-50 Cbm/H
Max.Dredging Depth 45°:
6m
Расстояние разряда:
500 метров
size:
10M*3.8M*1.0M
Main Engine:
120kw
consumption:
18L/H
Application:
sand suction
Work site:
river lake sea canal
Характер продукции
small jet suction sand dredger can be customized
1.Brief Introduction: Jet suction sand dredger is a very common kind of sand suction dredger, many
rivers are using this dredger construction, equipment work, suction halter through the winch down to the
bottom of the sand layer above, at the same time, the diesel engine drive the pump work, the water in the
river through the high-pressure pump, high-speed jet to the bottom sand layer, the sand is affected by the
impact of water, began to diffuse with water doping mixed. Under the action of the sand pump, the mixed
doped sand enters the equipment through the suction cage, passes the action of the pump in the cabin,
and then the sand is discharged to the shore through the conveying pipe.

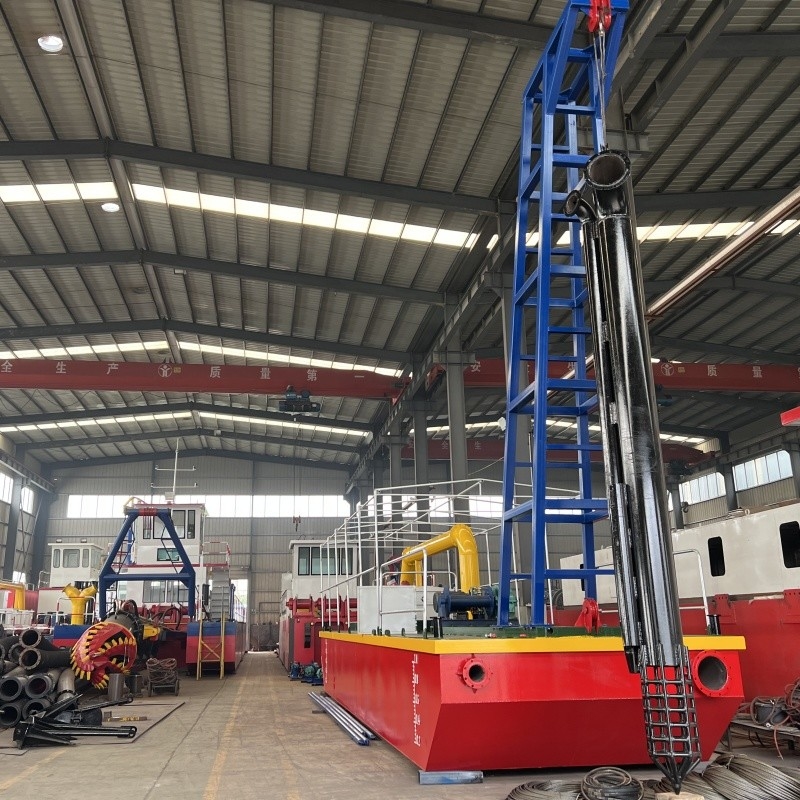

Small Jet Suction Sand Dredger Customized 0
Product Paramenters:
Model
Soild
capacity
Water flow
Dredging depth
Discharge distance
Main engine
Auxiliary engine
Total consumption
size(m)
6inch
40-50
m3/h
250
m3/h
6M
500M
120
KW

18L/H
10*3.8*1.6
8inch
80-100
m3/h
500
m3/h
8M
500M
176
KW
60KW
40L/H
14*4.5*1.2
10inch
150-180
m3/h
900
m3/h
10M
800M
294
KW
88KW
60L/H
17*5*1.2
12inch
200-250
m3/h
1400
m3/h
10M
1000M
456
KW
110KW
80L/H
20*6*1.5
14inch
300-400
m3/h
2000
m3/h
12M
1500M
735
KW
120KW
120L/H
24*6.6*1.6
16inch
400-500
m3/h
2600
m3/h
14M
1500M
882
KW
258KW
150L/H
24*7.2*1.8
18inch
500-600
m3/h
3000
m3/h
14M
1500M
1103
KW
456KW
220L/H
24*7.6*2.0
20inch
600-700
m3/h
3800
m3/h
14M
1500M
1250
KW
456KW
240L/H
26*7.6*2.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added.
The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

Small Jet Suction Sand Dredger Customized 1
Small Jet Suction Sand Dredger Customized 2
Small Jet Suction Sand Dredger Customized 3

























Shandong Yongsheng Dredging Machinery Co.,Ltd is specializing in the production of dredging equipment,

sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification equipment, sand

washing equipment, mineral processing equipment, etc. Our company has 20 years of professional

equipment production experience, passed the ISO9001 quality system certification, and is a member

of China Dredging association.
