500mm Cutter Suction Dredger with 1600m Discharge Distance

Name: 500mm Cutter Suction Dredger with 1600m Discharge Distance
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD500
Price: 1200000.00 USD
Availability: InStock

Детали продукта

Place of Origin: shandong

Фирменное наименование: yongsheng

Model Number: YSCSD500

Условия оплаты & доставки

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Получите самую лучшую цену

Детали продукта

Характер продукции

Детали продукта

Выделить:
                                                                                                                                                                                                                                                                                                                500mm cutter suction dredger, 1600m discharge dredger, large capacity suction dredger


Diameter pipe:	500mm	Water flow:	900 m3/h
Solid capacity:	900 cbm/h	Main Engine:	1,193 kw Cummins engine
Max. dredging depth 45°:	15 m	Discharge distance:	1,600 m
Generator:	30kw	Hydraulic cutter power:	220 kw

Diameter pipe:	500mm
Water flow:	900 m3/h
Solid capacity:	900 cbm/h
Main Engine:	1,193 kw Cummins engine
Max. dredging depth 45°:	15 m
Discharge distance:	1,600 m
Generator:	30kw
Hydraulic cutter power:	220 kw

Характер продукции

500mm Long Row Distance Cutter Suction Dredger for River and Lake Dredging

Key Specifications

Attribute	Value
Diameter pipe	500mm
Water flow	900 m3/h
Solid capacity	900 cbm/h
Main Engine	1,193 kw Cummins engine
Max. dredging depth 45°	15 m
Discharge distance	1,600 m
Generator	30kw
Hydraulic cutter power	220 kw

Product Overview

The 500mm cutter suction dredger features a cutting mechanism at the suction inlet that loosens bed material for efficient transport. Equipped with a wear-resistant centrifugal pump, it effectively handles hard surface materials like gravel deposits or surface bedrock where standard suction dredgers would be ineffective.

Technical Specifications

Water flow	4,800 m3/h
Solid capacity	900 cbm/h
LOA	47 m
Dredger dimensions	47×8.8×2.5m (L×W×D)
Dredger structure	Dismantle type for site assembly
Average draught	1.6 m
Total power	1,648 kw

Core Components

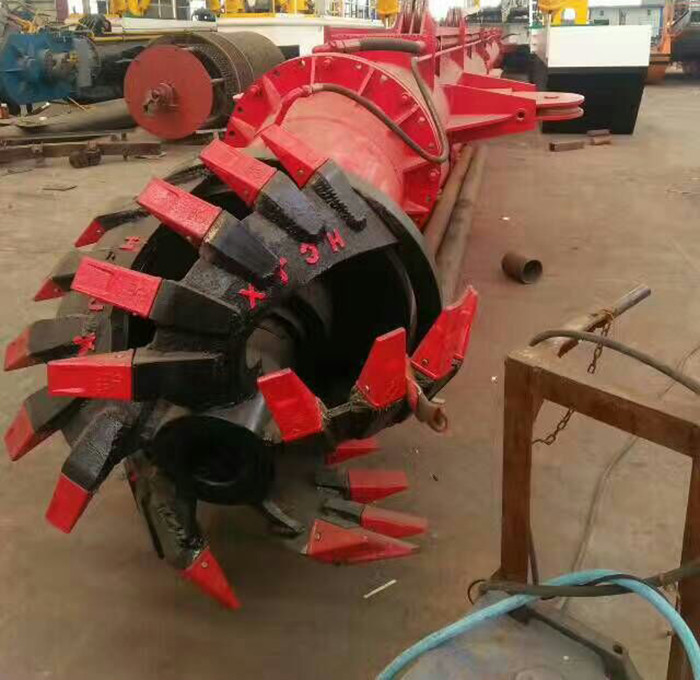

Cutter Head: Alloy cutters for breaking hard soil layers
Suction Pipe: Creates negative pressure for mud-water mixture suction
Dredge Pump: Powers mud transportation through discharge pipes
Positioning System: Spuds or DP dynamic positioning for precise movement
Ladder: Liftable structure supporting reamer and suction pipe

Operational Workflow

Excavation: Rotating cutter head cuts and crushes bottom materials at high speed.

Suction: Powerful mud pump generates vacuum to suck loosened material mixture.

Transport: Pressurized mud moves through internal pipe system.

Discharge: Material transported via pipeline to shore or loaded onto barges.

Key Features

Continuous high-efficiency operation
Wide material compatibility from silt to medium-hard rock
Long-distance material transport capability
Precise depth and flatness control
Reduced environmental impact compared to alternatives

Applications

Port and waterway construction
Land reclamation and island building
Environmental remediation projects
Subsea mineral mining operations

Company Profile

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd., established in 1995, specializes in designing and manufacturing cutter suction dredgers and aquatic weed harvesters. All products are ISO9001 certified and support SGS factory inspections.
